Elasticsearch

Elasticsearch is an SIEM integration. SIEM integrations are used to perform analysis of any SIEM generated alerts, and/or to use generated data as part of investigation analysis.

The Dropzone platform integrates with the Elasticsearch security SIEM. Many customers ingest other alert sources into Elasticsearch (e.g. IDPs) and integrate Dropzone into Elasticsearch rather than the source systems. Dropzone supports both Cloud deployments and On-premise deployments.

Integrations Overview

To enable these integrations you will perform the following actions:

Create an API key with the necessary permissions
Obtain your Elasticsearch Cloud ID
Enable the Alert source within your Dropzone tenant

If you are using the Elasticsearch Serverless Projects-Based Model or an On-premise Elasticsearch using the Dropzone connector, you will not need to provide a Cloud ID.

Create an API Key and Obtain a Cloud ID

Elasticsearch requires an API Key to enable.

To obtain a least-privilege API Key, do the following:

Navigate to your Elastic Cloud home page or deployment

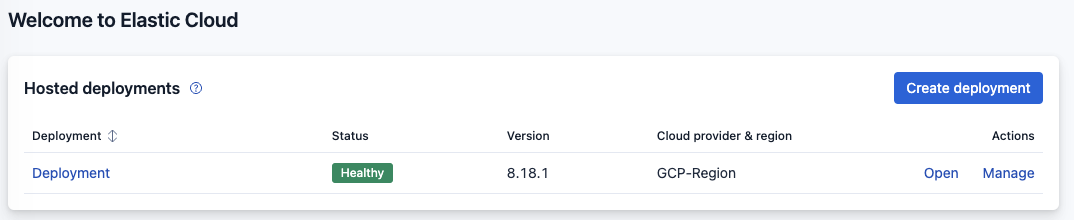

Under the Hosted Deployments section, locate the deployment you want Dropzone.AI to be able to access
Click "Open"

In the Deployment overview page, click "Management" in the bottom left corner

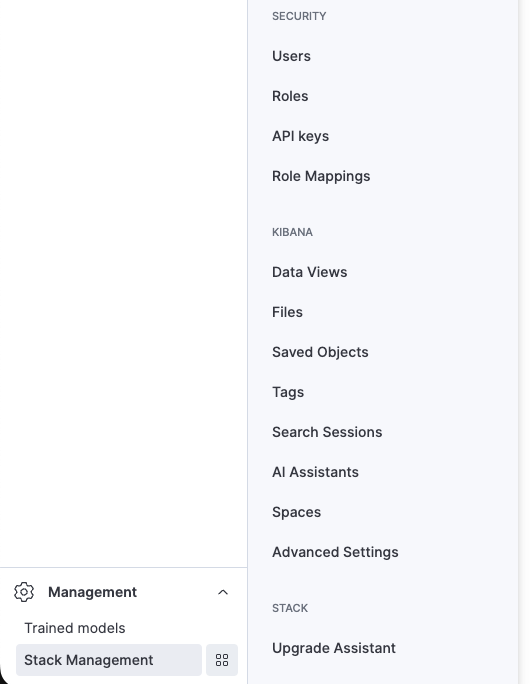

Click the icon next to Stack Management
Navigate to API keys

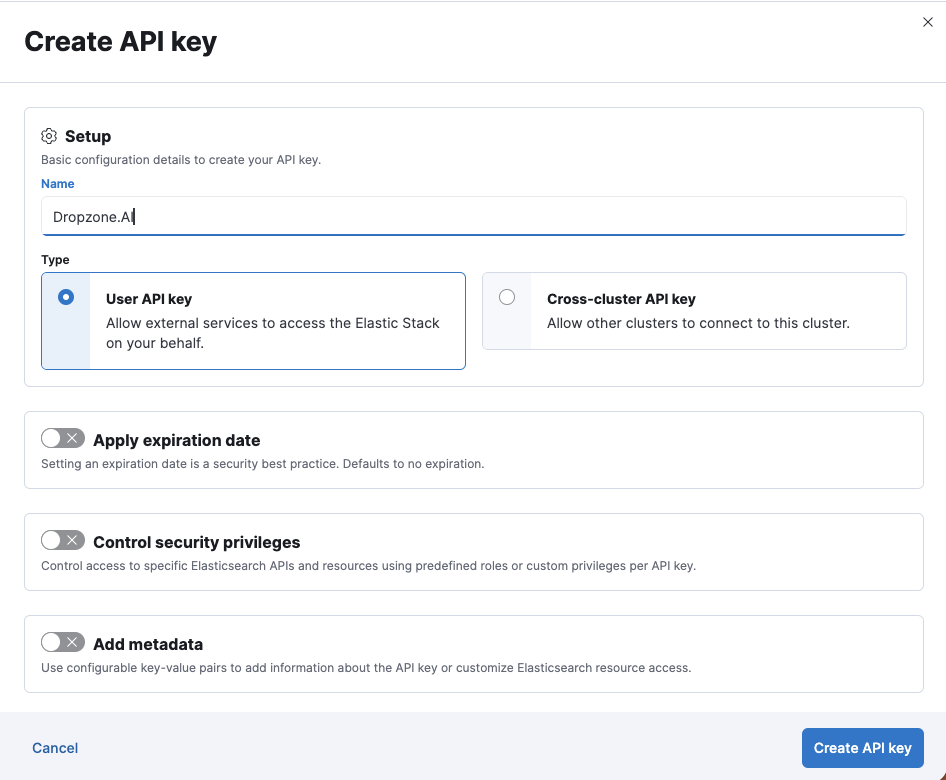

Click "Create an API key"

Name the API key something memorable, such as Dropzone.AI
Under type, select User API key

Turn on "Control security privileges"

Dropzone requires the following security privileges across its Alert and Data Source integrations.

Privilege

Level

Purpose

Used In

monitor

Cluster

Discovering index templates

Alert Source, Data Source

read

Index

Searching documents during investigations

Alert Source, Data Source

monitor

Index

Listing indexes during scan (_cat/indices)

Data Source

view_index_metadata

Index

Listing data streams during scan (_data_stream)

Data Source

Cluster and index privileges are separate. Cluster monitor does not grant monitor on index

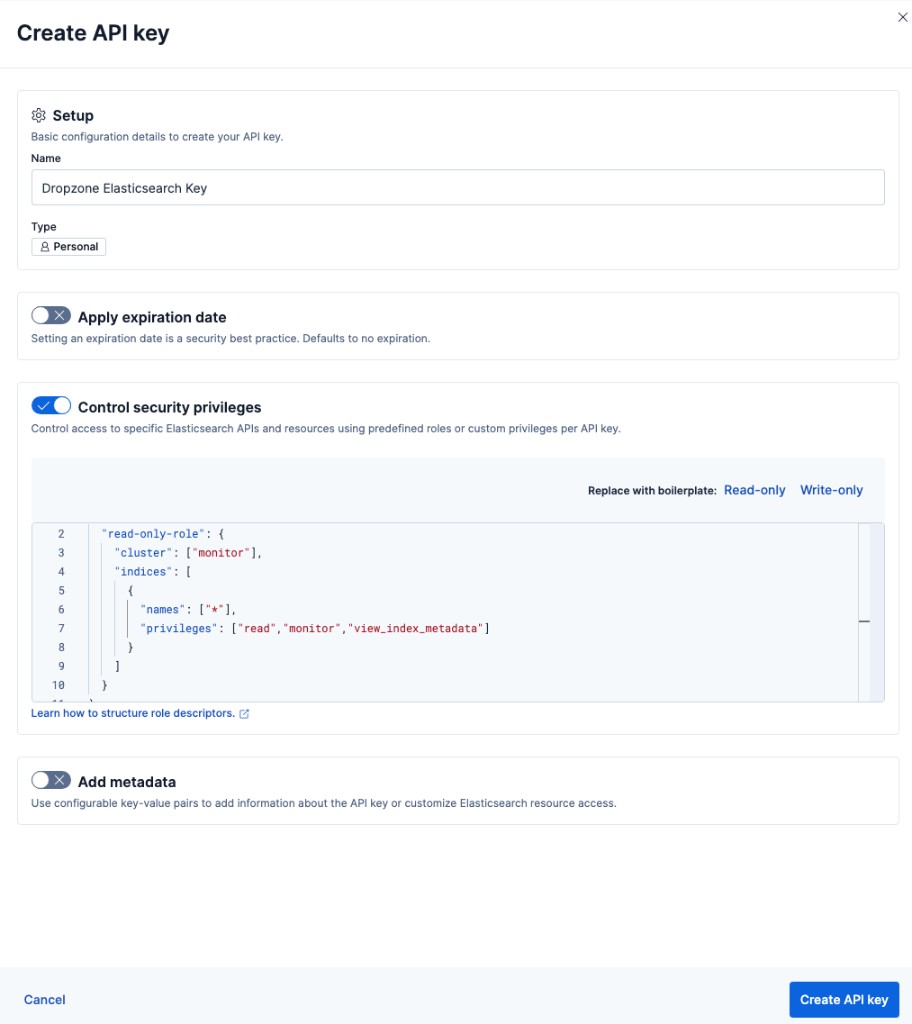

Paste the following JSON into the privileges editor. Replace "*" in names with the index patterns Dropzone should use, such as logs-* or winlogbeat-*. The * pattern does not match hidden indexes (names that start with .).

{
  "read-only-role": {
    "cluster": ["monitor"],
    "indices": [
      {
        "names": ["*"],
        "privileges": ["read", "monitor", "view_index_metadata"]
      }
    ]
  }
}

Click "Create API Key"

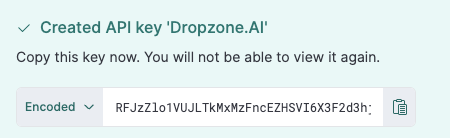

Copy the API key generated for use later in the Dropzone UI, where it is called "API Key"

Obtain your Elasticsearch Cloud ID

To obtain your Cloud ID, do the following:

Navigate to your Elastic Cloud home page
Under the Hosted Deployments section, locate the deployment you wish Dropzone.AI to be able to access
Click "Open"

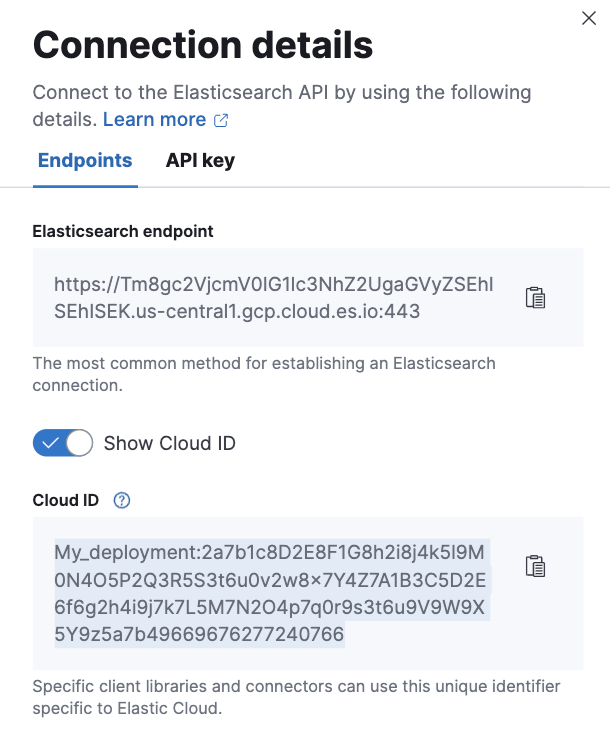

In the upper right of the Overview page, click "Endpoint & API Keys"

Check "Show Cloud ID"
Copy the value shown for use later in the Dropzone UI, where it is called "Elasticsearch Cloud ID"

Enable Elasticsearch

To enable the Alert Source integration, you will need the following information:

Dropzone Field

Source

Elasticsearch Cloud ID

The cloud ID value copied earlier. Only necessary if you have an Elastic Cloud Hosted deployment

Elasticsearch Server

The server for your Elasticsearch project, e.g. https://my-project.es.us-west-2.aws.elastic.cloud

API Token

The API token value generated earlier

To enable the Alert Source integration, do the following:

Navigate to your Dropzone AI tenant home page e.g. https://mycompany.dropzone.app

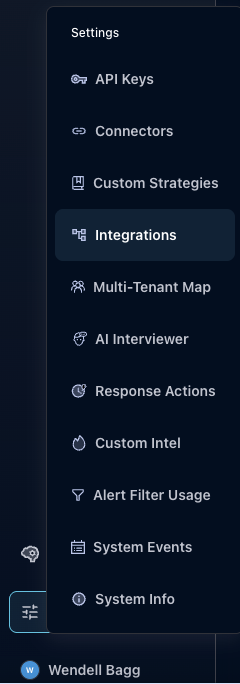

In the left side bar, navigate to Platform Settings > Integrations

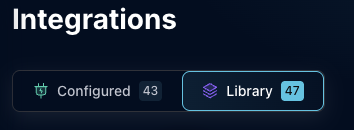

Click "Library"

If you have previously integrated this application, click "Configured"

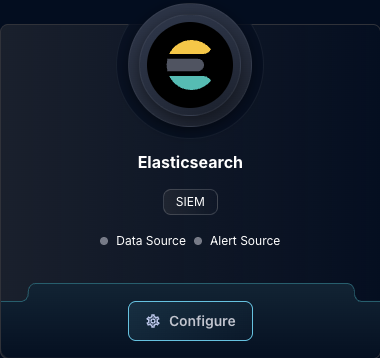

In the Search bar, search Elasticsearch, then click "Configure"

Under the Alert Source heading, if your Elasticsearch integration is behind an On-premise Dropzone Connector, select your connector from the dropdown
If you have a Cloud deployment, check the box labeled "Connect with Elastic Cloud ID," then input the Elasticsearch Cloud ID and API Key

Otherwise, input the Elasticsearch Server, Port, and API Key

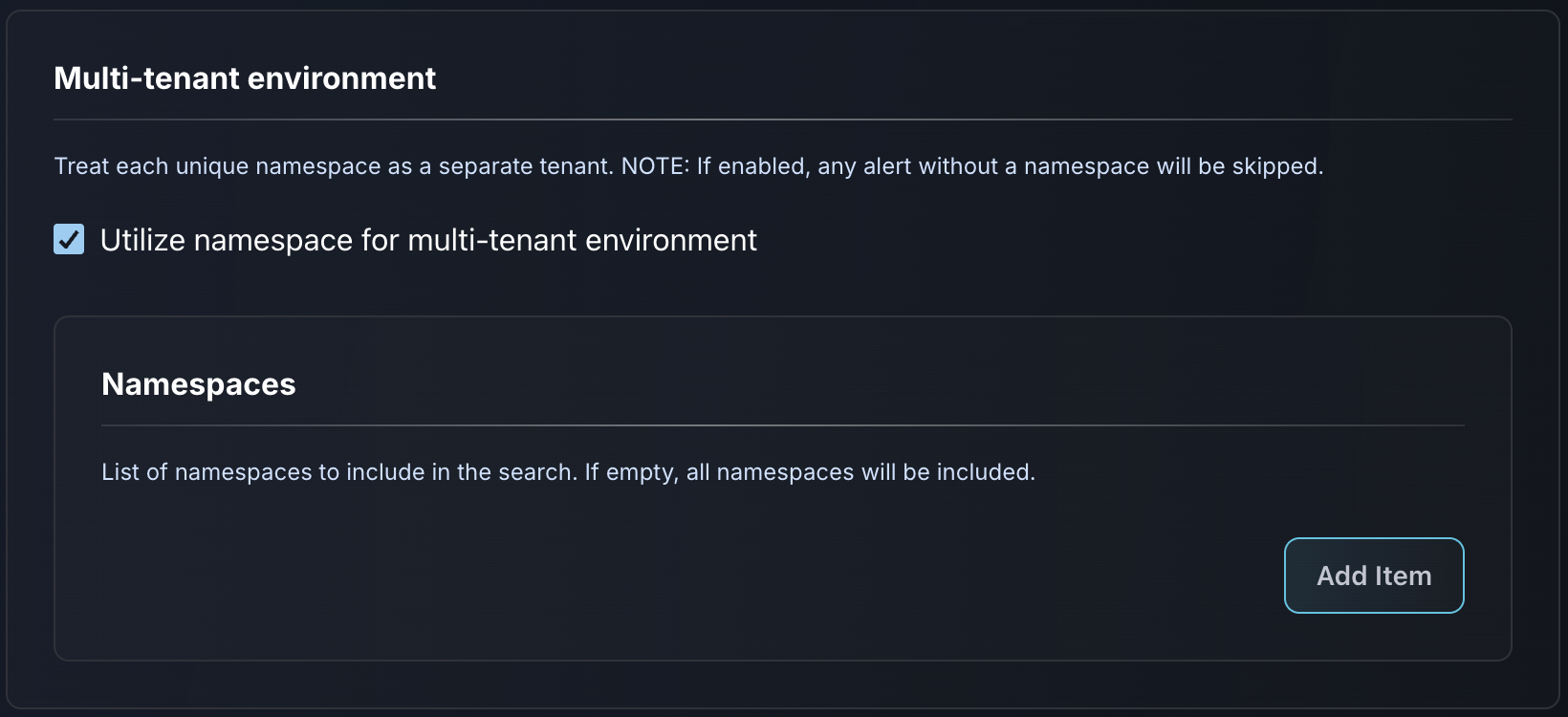

If you wish to enable namespace-based multitenancy, check the box labeled "Utilize namespace for multi-tenant environment." Otherwise, leave blank. See the bottom of this documentation for further information

Under the heading Elasticsearch Alert Queries, click "Add item" to add Elasticsearch Alert Queries for Dropzone to investigate

You may use the Elasticsearch Kibana alerts, or create your own custom index and query string
To use your own custom index and query string, uncheck the box labeled "Use Kibana Alerts." Input your custom index and query string into the areas labeled "Custom Index" and "Query String", then click "Add Item"

To use Elasticsearch Kibana Alerts, check the box labeled "Use Kibana Alerts"
- In the "Kibana Alert Index" section, input an Index pattern for Kibana security alerts
- You may choose to allow Dropzone to inject only specific Kibana alert schema under the heading "Kibana Alert Status Allowlist". If you do, click "Add Item" to add specific Kibana alert statuses. Otherwise, leave blank

Under the heading "Kibana Alert Severities", check the box for each severity level you want Dropzone to investigate alerts for

You may choose to allow Dropzone to allow or exclude select Kibana Alert Rules
- If you wish to include an Alert Rule, click "Add item" under the heading "Kibana Alert Rule Allowlist". If you wish to exclude a rule, click "Add Item" under the section labeled "Kibana Alert Rule Exclusion List". Otherwise, leave blank

Once you have finished adding your Elasticsearch Alert Queries, click "Add item" at the end of the Kibana Alerts section

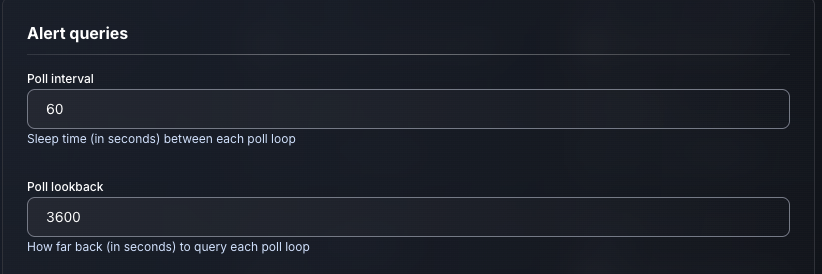

Input your desired poll interval and lookback

If you wish to further filter alerts using the Python CEL package, check the box labeled "Use advanced filtering"
Input your CEL expression, then select whether to include or exclude alerts matching that filter. Add each filter individually using the "Add Item" button
Contact your Dropzone AI support representative for more information about this feature

Click "Test & Save" to finish

Multitenancy Configuration Using Namespaces

The Elasticsearch integration supports multitenancy based on the Elastic data stream naming scheme. This approach allows you to leverage Elasticsearch's built-in data organization capabilities while maintaining proper tenant separation within Dropzone.

Understanding Elastic Namespaces

Elastic data streams follow a structured naming convention: {type}-{dataset}-{namespace}

The namespace component is a user-configurable arbitrary grouping that provides flexibility in organizing data. For example, you might have data streams like logs-nginx.access-production or logs-nginx.access-staging, where production and staging are different namespaces.

For more details on the Elastic data stream naming scheme, see An introduction to the Elastic data stream naming scheme.

Enabling Namespace-Based Multi-tenancy

When the multi-tenant configuration is selected and the multi-tenant map is enabled in Dropzone, you can map Elasticsearch namespaces to tenants within the multi-tenant map. This enables alert investigation to only search for data within a specific namespace related the alert.

To configure namespace-based multi-tenancy, do the following:

Define your namespace-to-tenant mappings to specify which Elasticsearch namespaces should be associated with which Dropzone tenants
Enable the multi-tenant configuration option in your Elasticsearch integration settings

Ensure your Elasticsearch data streams follow the standard naming convention with appropriate namespace values
(Optional) Specify namespaces with alerts that are desired to be investigated otherwise all alerts with a namespace will be ingested.

If this configuration is enabled and an alert is ingested without the namespace specified, the alert will be dropped and will not be investigated.

If you have any errors engage your Dropzone AI support representative.
