IPInfo.io

IPinfo.io is a Threat Intelligence (TI) integration. TI Data Source integrations are used during investigations to improve analysis and in interactive chat to help answer questions. They are optional, but enabling more tooling integrations enhances Dropzone analysis.

The Dropzone platform integrates with IPinfo.io to determine IP information such as IP reputation, location data, proxy detection, and organization context.

Create an API Key

IPinfo.io requires an API key to enable.

To obtain API Key, do the following:

• Navigate to your IPinfo.io account

• In the left sidebar, click on "Token"

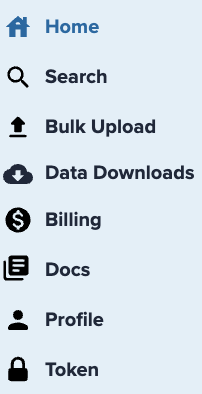

IPInfo.io Sidebar

• Record the access token shown for use later in the Dropzone UI where it is called "API key"

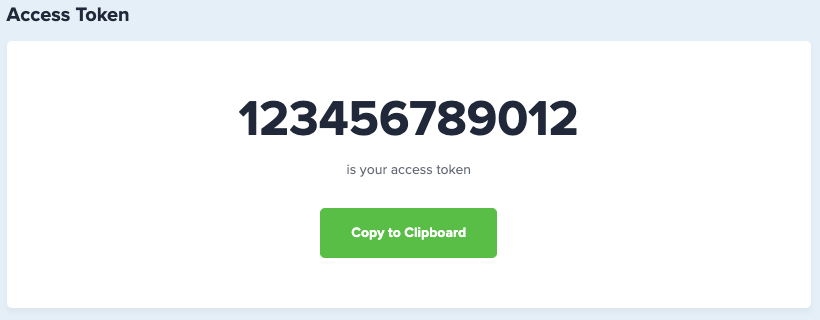

The API key

Enable IPinfo.io

To enable the Data Source integration, do the following:

• Navigate to your Dropzone AI tenant home page e.g. https://mycompany.dropzone.app

• In the bottom left hand corner, click Settings > Integrations

Integrations Dropdown

• Click "Available"

Click Available

• In the Search bar, search ipinfo.io, then click "Configure"

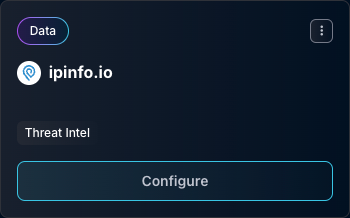

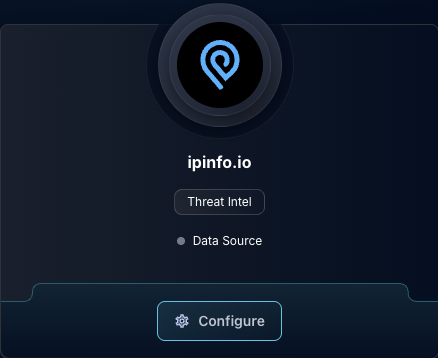

The ipinfo.io Data Tile

• Input the API key

• Under "Trusted Enterprise Remote Access Solutions," select from the dropdown any remote-access solutions you wish to treat as a trusted enterprise

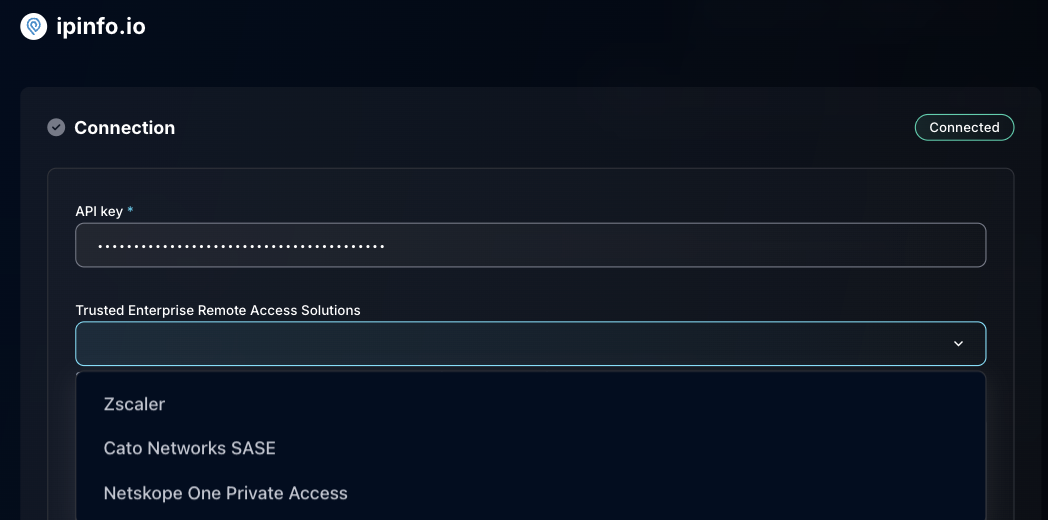

The ipinfo.io Data Source Configuration (pt 1)

• In the "Trusted Networks" section, you may input a list of trusted IP addresses or CIDR ranges to exclude from analysis. To do so, click "Add Item," input the IP address or range, and add a brief description of the network. Continue adding items until done

The ipinfo.io Data Source Configuration (pt 2)

• Click "Test & Save" to finish

If you have any errors engage your Dropzone AI support representative.
