> For the complete documentation index, see [llms.txt](https://docs.dropzone.ai/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.dropzone.ai/platform/settings/connector/connector-installation.md). # Dropzone Connector Installation {% hint style="success" %} Before proceeding, see the [Dropzone Connector Overview](/platform/settings/connector.md) for more information about when you would require the Dropzone Connector in your environment. {% endhint %} ## Enabling the Private Network Connector Client Running the Private Network Connector Client requires a machine that meets the following requirements: * System * has Docker Engine (Docker CE) installed * capable of running x86\_64 Linux docker containers * has at least 1 GB of available memory * has at least 1 GB of available disk space * has access to at least one CPU core * assure it is not running on a system that will 'steal' CPU; doing so will introduce instability * Network * can reach the resources (e.g. Splunk) you want available for Dropzone integrations * can connect outbound port 443 to the connector server * the connector server is the same as your tenant name with `-connector` after the first component. For example if your tenant is https\://*mycompany*.dropzone.app then your connector server is *mycompany*-connector.dropzone.app port 443 * has access to DNS that can look up your tenant DNS name and internal resources * Availability * is up 24x7 This may be a machine dedicated to this container, or a multi-use resource that meets your security policy. Henceforth we will call this machine the `connector-client-host`. To install the Private Network Connector Client, do the following: * Navigate to your Dropzone AI tenant home page e.g. https\://*mycompany*.dropzone.app * In the left sidebar, navigate to Platform Settings > System Configuration

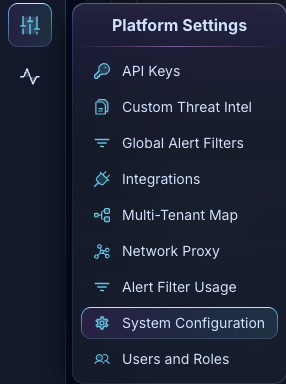

Platform Settings > System Config Dropdown

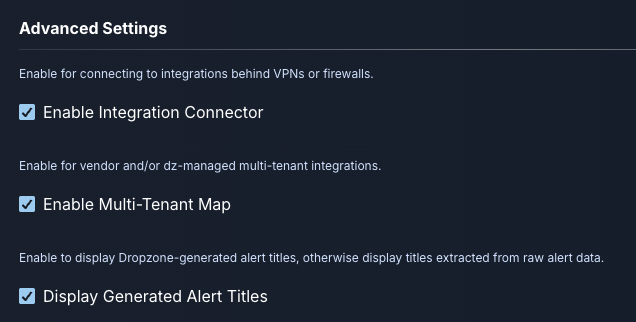

* Under Advanced Settings, check the box labeled "Enable Integration Connector"

* In the bottom left, click "Save"

* Once done, navigate to Platform Settings > Network Proxy

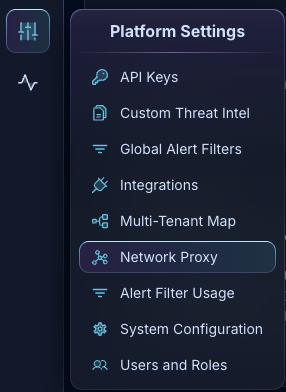

Platform Settings > Network Proxy Dropdown

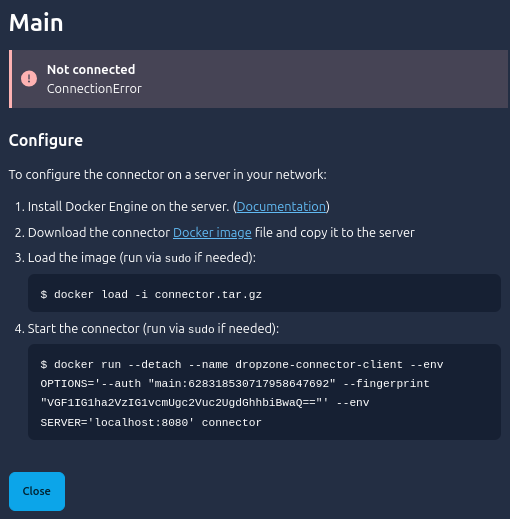

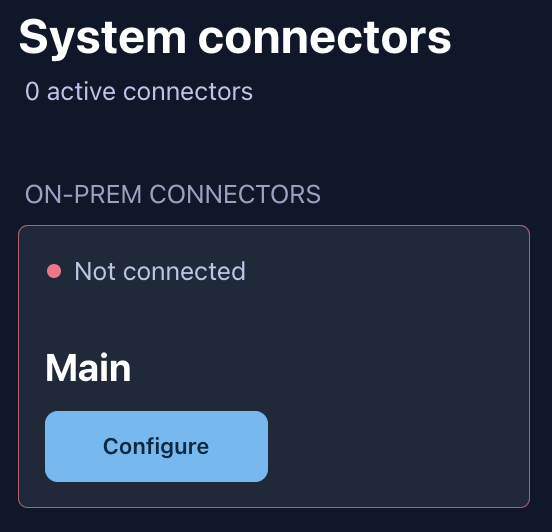

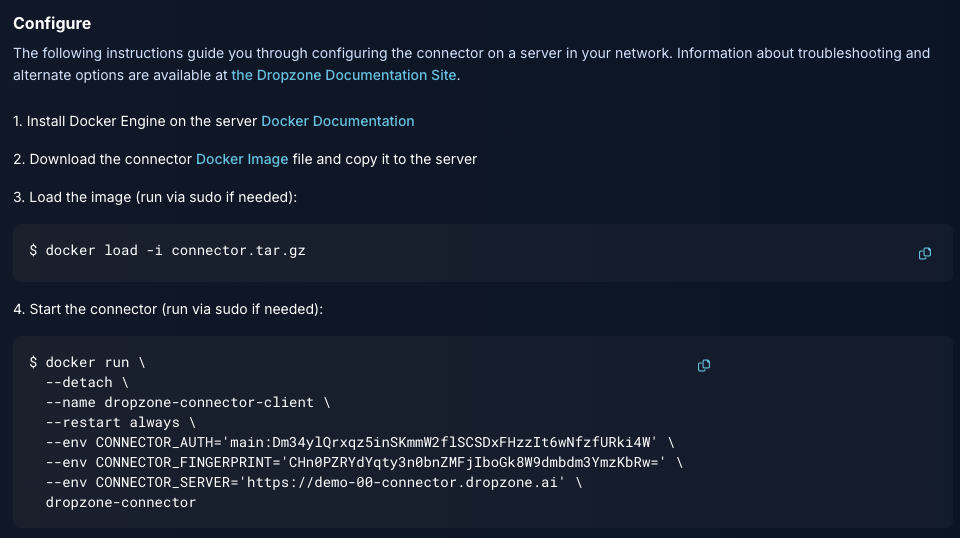

* In the System Connectors page, under "Main," click "Configure" * Configuration instructions should be visible

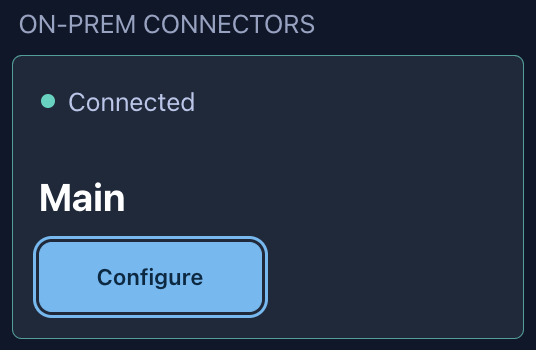

* Download the Private Network Connector Client docker image by clicking on the link * Upload the Private Network connector Docker image to the connector-client-host, e.g. via `scp` * Load the docker image on the connector-client-host ```bash connector-client-host$ sudo docker load -i connector.tar.gz # Or, if sudo is not needed connector-client-host$ docker load -i connector.tar.gz ``` * Copy the command in the Dropzone UI and run it on the connector-client-host: ```bash connector-client-host$ sudo docker run --detach --name connector --env OPTIONS='--auth ... # Or if sudo is not needed connector-client-host$ docker run --detach --name connector --env OPTIONS='--auth ... ``` * Verify the connector is running by using `docker ps` ```bash connector-client-host$ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS NAMES 1c92972436d9 connector "/app/init" 3 seconds ago Up 2 seconds dropzone-connector-client ``` * Click Close * Refresh the page and you should see that `Main` is now in "Connected" state:

When enabling Data and Alert sources that need on-prem access, be sure to specify this Private Network Connector Client. ## Alternate Launch Options The Dropzone UI System > Connector page provides a default `docker run` command that will work for most scenarios. This section describes alternate options for your `docker run` that may be appropriate for your environment. ### Outbound HTTP Proxy The Dropzone connector supports using an outbound HTTP proxy, such as [Squid](https://www.squid-cache.org/), a setup for locked down DMZs for example. To use an explicit HTTP proxy, update the `docker run` provided by the Dropzone UI by passing the `HTTPS_PROXY` flag into the environment: ```bash ## Send the outbound tunnel request via http://proxy.example.com:3128 ## Replace with your actual proxy url/port ## $ docker run ... --env HTTPS_PROXY=http://proxy.example.com:3128 ... ``` You will need to configure your proxy to allow outbound `CONNECT` to the host *tenant*-connector.dropzone.app port 443. ## Troubleshooting The following troubleshooting steps may be useful in conjunction with our Customer Success team. ### Restarting the Private Network Connector Container It is always safe to delete and relaunch the connector, for example if it does not come back properly after a reboot or system failure. ```bash $ docker stop connector $ docker rm connector $ docker run ... <-- command you got from the Dropzone interface ``` ### Testing Internal Connectivity The connector service runs in a docker container on a host in your network. If it is unable to reach to your internal systems then you will get an error when configuring your integration in the Dropzone UI such as `Error 111 - Connection Refused`. #### Test from the Host Testing from the host where you're running the connector is sufficient in almost all cases. Using tools such as `curl`, `telnet`, netcat (`nc`, `ncat`, etc), or `openssl` are good ways to test any network ACLs that may be preventing your traffic. Examples: ```bash # See if splunk is available $ curl -k -v https://our-splunk.example.com # Same, showing certificate $ openssl s_client -connect our-splunk.example.com:443 # just test the port is open or not $ telnet our-splunk.example.com 443 $ nc -vz our-splunk.example.com 443 ``` #### Test From Inside the Connector It's possible your docker host can reach your targets, but the connector container cannot. this could be caused by DNS inconsistencies, or having an IP address range for your connector network (traditionally 172.17.0.0/16) that overlaps your target's networks. In these cases, it may be helpful to test from within the connector container directly. The Dropzone connector container has a very minimal configuration. It includes `curl` and `python3`, but not `openssl`, `telnet`, netcat (`nc`, `ncat`, etc), or a shell. Here is an example of testing connectivity to with `curl`: ```bash $ host="www.example.com" $ port=443 $ docker exec dropzone-connector-client curl -skv https://$host:$port -o /dev/null ``` If you see a TLS handshake and an HTTP response status (e.g. `< HTTP/2 200` or `< HTTP/1.1 200 OK`), then the connector has network connectivity to the target. If `curl` is not available (for example on an older connector image), you can use `python3` to open a TLS connection instead: ```bash $ docker exec dropzone-connector-client python3 -c \ "import socket, ssl, sys; h, p = sys.argv[1], int(sys.argv[2]); s = ssl._create_unverified_context().wrap_socket(socket.create_connection((h, p), timeout=5), server_hostname=h); print('Connected:', s.version())" \ $host $port ``` If you see `Connected: TLSv1.3` (or similar), then the connector has network connectivity to the target. ### Testing Outbound Network Connectivity If the connector fails to connect there could be a network issue or an IPS device that is preventing it from establishing the websocket connection. Running the following from the host where the connector runs can help identify this situation: ```bash # the first part of your tenant hostname, e.g. "mycompany" # if your tenant is https://mycompany.dropzone.app $ tenant=mytenant $ curl --http1.1 -i -N \ -A "Go-http-client/1.1" \ -H "Connection: Upgrade" \ -H "Upgrade: websocket" \ -H "Host: $tenant-connector.dropzone.app:443" \ -H "Sec-WebSocket-Key: AAAAAAAAAAAAAAAAAAAAAA==" \ -H "Sec-WebSocket-Protocol: chisel-v3" \ -H "Sec-WebSocket-Version: 13" \ "https://$tenant-connector.dropzone.app:443" ``` When successful, you should see an HTTP handshake and websocket upgrade like this: ``` HTTP/1.1 101 Switching Protocols Upgrade: websocket Connection: Upgrade Sec-WebSocket-Accept: ICX+Yqv66kxgM0FcWaLWlFLwTAI= SSH-chisel-v3-server ``` {% hint style="success" %} If your network requires an HTTP Proxy for outbound connectivity to the connector server, add an `-x` option to your `curl` command above. For example if you use squid on squid.example.com port 3128, you'd add `-x squid.example.com:3128` to the command. {% endhint %} Any device along the path that is interfering will likely provide feedback when this command is run. ### EDR/Firewall/IPS Considerations The Dropzone Connector Client establishes outbound encrypted connections to your Dropzone SaaS environment which contain reverse tunnels to your on-prem systems. Unfortunately, because this traffic pattern can resemble a Command and Control (C2) client/server setup, some EDR, firewall, or networking tools may flag or block this traffic. If the connector does not work, check to see if your EDR is blocking the container process, or if an upstream network device is interfering with the connections. Your security tools should allow you to allowlist the Connector Client binary or associated network traffic. Make the related changes and it should be able to support a reliable connection for your on prem services. {% hint style="info" %} Detection similar to `HackTool:Linux/Chisel.B!MTB...` is a false positive. [Chisel](https://github.com/jpillora/chisel) is an FIPS compliant secure tunneling tool, and is used within the connector to establish secure connectivity between the Dropzone SaaS and on-prem technologies. You may need to allow-list this Chisel binary in your EDR. {% endhint %} ## Connector Healthchecks The default Dropzone Private Network Connector Client `docker run` command is set to automatically restart the container if it fails. However here are additional ways you can healthcheck the container. ### External Healthcheck The connector serves a `/ping` endpoint on port 8000, which returns `204 No Content` when the connector is healthy. The default `docker run` command does not publish port 8000 to the host, so `curl localhost:8000/ping` from the host will not work. Instead, use one of the options below. The simplest option is to run `curl` inside the container with `docker exec`: ```bash $ docker exec dropzone-connector-client curl -s -o /dev/null -w '%{http_code}\n' http://127.0.0.1:8000/ping 204 ``` The connector image also has a built-in Docker `HEALTHCHECK`, so you can ask Docker for the container's health status: ```bash $ docker inspect --format '{{.State.Health.Status}}' dropzone-connector-client healthy ``` Alternatively, you can hit `/ping` on the container's IP address from the host. For example, assuming the connector has received IP address 172.17.0.3, you would use the following: ```bash # Find the container IP address $ docker inspect --format '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' dropzone-connector-client 172.17.0.3 $ curl -i 172.17.0.3:8000/ping HTTP/1.1 204 No Content Date: Sat, 19 Apr 2025 11:43:00 GMT Server: Python/3.11 aiohttp/3.12.13 ``` Similarly, you could use `nsenter` to run your host's `curl` within the container network: ```bash $ sudo nsenter -t $(docker inspect --format '{{ .State.Pid }}' dropzone-connector-client ) -n curl -v http://127.0.0.1:8000/ping ``` ### Internal Healthcheck From within the container (e.g. if you are using `docker compose`) you can use `python` to healthcheck the `/ping` endpoint. ```bash python3 -c "import http.client, sys; c=http.client.HTTPConnection('127.0.0.1',8000,timeout=5); c.request('GET','/ping'); sys.exit(0 if c.getresponse().status==204 else 1)" ``` ## Upgrading the Private Network Connector Client Dropzone updates the connector client infrequently to improve reliability, performance, or security. Follow these steps to upgrade. * Identify the machine where you are currently running the connector (henceforth called "connector-client-host") * Follow the steps in [Enabling the Private Network Connector Client](#enable) above. Do not including running the new container * Download the connector docker image * Copy the image to your connector-client-host * Load the docker image (but do not run it yet) * Log into the connector-client-host (e.g. via `ssh`) * Permanently stop the old Dropzone connector container * If you followed the default `docker run` instructions then it will be named `dropzone-connector-client`, but you may have named it differently ```bash # Verify it not running $ docker ps | grep dropzone CONTAINER ID IMAGE COMMAND NAMES 44726f707a6f dropzone-connector "/app/main.py" dropzone-connector-client # Stop and remove it $ docker stop dropzone-connector-client $ docker rm dropzone-connector-client # Verify it is not running $ docker ps | grep dropzone CONTAINER ID IMAGE COMMAND NAMES ``` * Start the new connector container by copy/pasting the command from your Dropzone UI * This is described above in [Enabling the Private Network Connector Client](#enable) ## Disabling the Private Network Connector Client You may disable the Private Network Connector Client at any time. This is typically done when you are migrating the Connector Client to a different host virtual machine. {% hint style="warning" %} Disabling your Private Network Connector Client will prevent the Dropzone platform from reaching your "on-prem" services. You should only disable it when migrating to a new Connector Client host, or when no longer needed such as at the end of your POC or contract. {% endhint %} To disable it, simply run the necessary `docker` commands. ```bash # Stop and remove it $ docker stop dropzone-connector-client $ docker rm dropzone-connector-client # Verify it is not running $ docker ps | grep dropzone CONTAINER ID IMAGE COMMAND NAMES ``` As soon as the container is stopped the remote access is instantly terminated. You can verify by going to Platform Settings > Network Proxy and you should see "Not connected"

*** If you have any errors contact our Customer Success team.
