The Dropzone platform integrates with Cato Networks, a cloud-native Secure Access Service Edge (SASE) platform that provides capabilities such as SD-WAN, secure web gateway (SWG), firewall-as-a-service (FWaaS), zero trust network access (ZTNA), and cloud access security broker (CASB).
By integrating with Cato Networks, Dropzone AI can leverage network and VPN telemetry to enhance security investigations by analyzing network traffic associated with alerts, identifying devices behind IP addresses, and correlating user and VPN activity across the environment.
Obtain Account ID and API Key
Cato Networks requires an Account ID and an API key to enable. You will need access to an account administrator with the Editor privilege to generate keys.
To locate your Account ID, do the following:
Log in to your Cato Networks account
In the URL, locate the four-digit integer and copy it for use later in the Dropzone UI where it is called "Account ID"

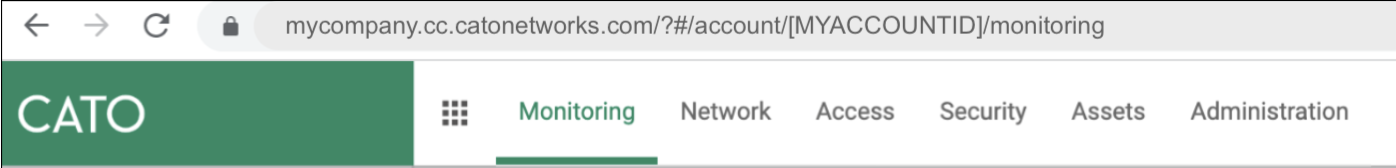

The Account ID
To generate an API key, do the following:
In the upper banner of your Cato Networks homepage, click "Administration"

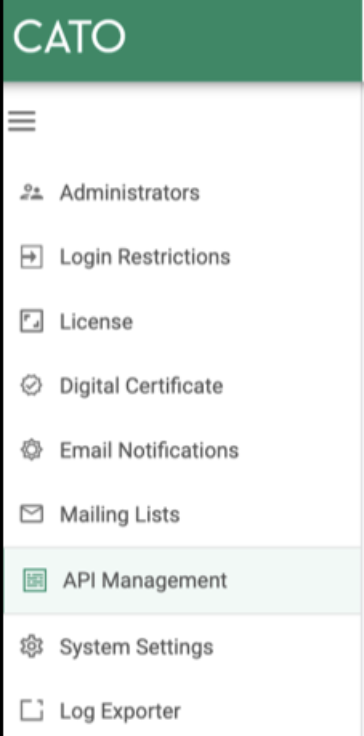

Navigate to "Administration"
In the right, click "API Management"

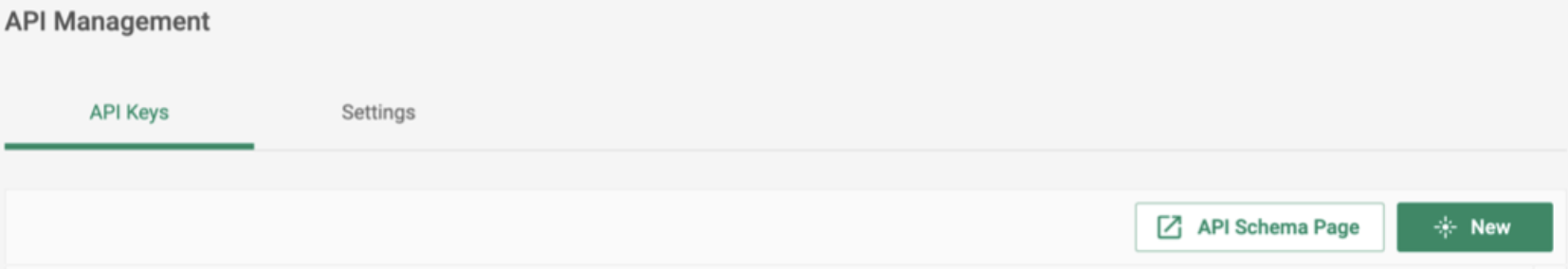

Click "API Management"
Click "* New"
Click New
Name the API key something memorable, such as Dropzone AI
Under "API Permission," click "View"
Under "Allow access from IPs," click "Any IP"
If you wish, assign the API key an expiration date
Click "Apply"

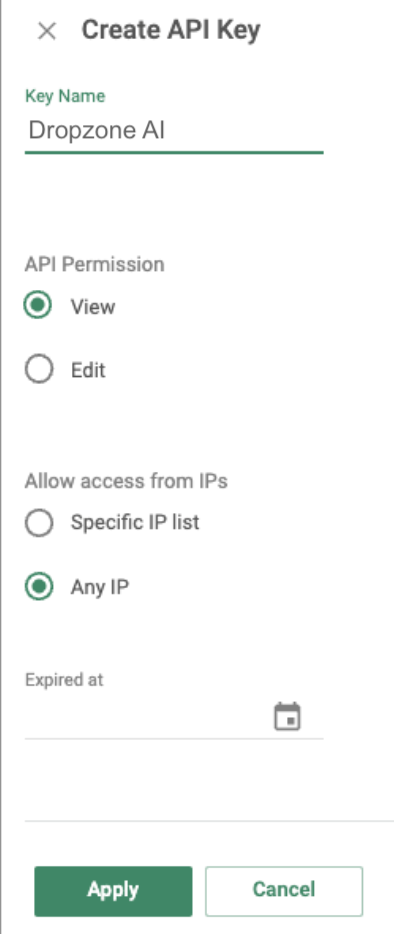

Create New API Key
Copy the API key shown for use later in the Dropzone UI where it is called "API Key"
Enable Cato Networks
To enable the Dara Source integration, you will need the following information:
Dropzone Field
Source
Cato Networks API FQDN
The FQDN of your Cato Networks API instance, e.g. api.catonetworks.com
Account ID
The Account ID value you copied earlier
API Key
The API key value you copied earlier
Navigate to your Dropzone AI tenant home page e.g. https://mycompany.dropzone.app
In the bottom left hand corner, navigate to Settings > Integrations
Integrations Dropdown
Click "Available"
Click Available
In the Search bar, search Cato Networks, then click "Configure"

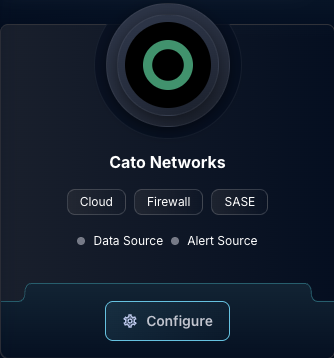

The Cato Networks tile
Under the Alert Source heading, input the Cato Networks API FQDN, Account ID and API Key

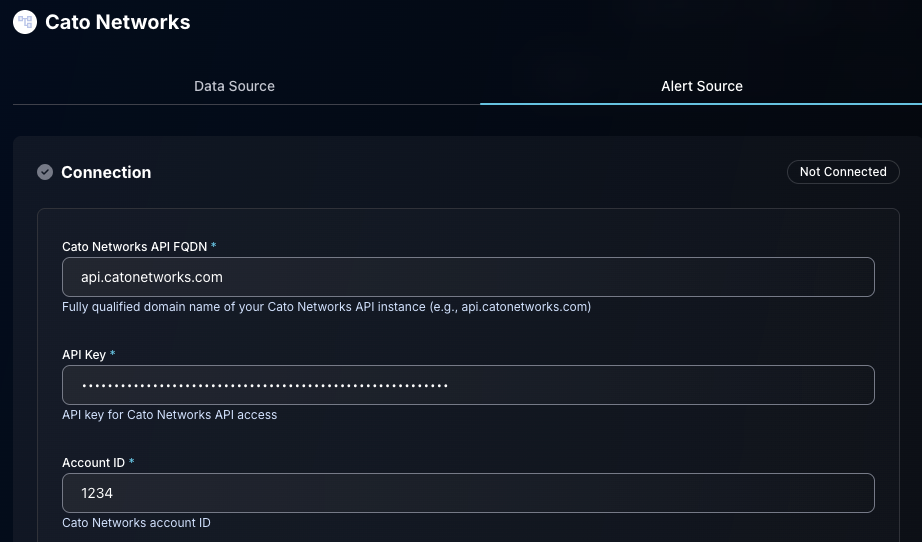

The Cato Networks Data Configuration (pt 1)
In the Action Filter section, select the events you want Dropzone to ingest
Cato Networks assigns actions to each event that occurs in your account, which Dropzone then uses to filter. For more information, click here

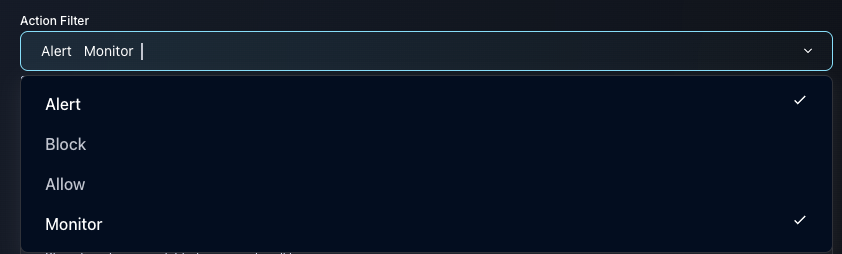

The Cato Networks Data Configuration (pt 2)
Input your desired poll interval and lookback
Click "Test & Save" to finish
The Cato Networks Data Configuration (pt 3)
If you have any errors engage your Dropzone AI support representative.
